Name: Mains

Display Field: FACILITYID

Type: Feature Layer

Geometry Type: esriGeometryPolyline

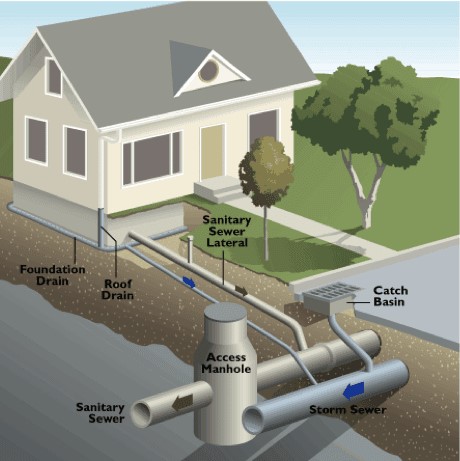

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>Gravity Mains are underground pipes and channels. Typical cross sectional shapes are circular, rectangular, elliptical, or arched. Mains may be denoted RCP, CMP, or CAP material with varying sizes (in) such as 12, 15, 18, 24, 30, 36, 42, etc. </SPAN></P></DIV></DIV></DIV>

Copyright Text: Village of Wellington GIS; Public Works Department; Surface Water Division

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 884661.8533821777
YMin: 822118.5864465311
XMax: 925772.4676830955
YMax: 854354.1154792756
Spatial Reference: 2881  (2881)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [147, 70, 68, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• FACILITYID ( type: esriFieldTypeString, alias: Facility Identifier, length: 20 )
• INSTALLDATE ( type: esriFieldTypeDate, alias: Install Date, length: 8 )
• MATERIAL ( type: esriFieldTypeString, alias: Material, length: 20 )
• DIAMETER ( type: esriFieldTypeDouble, alias: Diameter )
• MAINSHAPE ( type: esriFieldTypeString, alias: Main Shape, length: 50 )
• LINEDYEAR ( type: esriFieldTypeString, alias: Year Lined, length: 4 )
• LINERTYPE ( type: esriFieldTypeString, alias: Liner Type, length: 20 , Coded Values: [CP: Cured in Place] , [FF: Fold and Form or Deform/Reform] , [SN: Segmented Panel] , ...4 more... )
• FROMMH ( type: esriFieldTypeString, alias: From Manhole, length: 11 )
• TOMH ( type: esriFieldTypeString, alias: To Manhole, length: 11 )
• ENABLED ( type: esriFieldTypeSmallInteger, alias: Enabled , Coded Values: [0: False] , [1: True] )
• ACTIVEFLAG ( type: esriFieldTypeSmallInteger, alias: Active Flag , Coded Values: [0: False] , [1: True] )
• OWNEDBY ( type: esriFieldTypeSmallInteger, alias: Owned By , Coded Values: [1: Our Agency] , [-1: Private] , [-2: Other] , ...4 more... )
• MAINTBY ( type: esriFieldTypeSmallInteger, alias: Managed By , Coded Values: [1: Our Agency] , [-1: Private] , [-2: Other] , ...4 more... )
• SUMFLOW ( type: esriFieldTypeDouble, alias: Flow Summary )
• LASTUPDATE ( type: esriFieldTypeDate, alias: Last Update Date, length: 8 )
• LASTEDITOR ( type: esriFieldTypeString, alias: Last Editor, length: 50 )
• DOWNELEV ( type: esriFieldTypeDouble, alias: Downstream Elevation )
• UPELEV ( type: esriFieldTypeDouble, alias: Upstream Elevation )
• SLOPE ( type: esriFieldTypeDouble, alias: Slope )
• SPATIALSTATUS ( type: esriFieldTypeString, alias: Spatial Status, length: 30 )
• ProjectType ( type: esriFieldTypeString, alias: Project Type, length: 50 )
• ProjectMonth ( type: esriFieldTypeInteger, alias: Project Month )
• ProjectFiscalYear ( type: esriFieldTypeString, alias: Project Fiscal Year, length: 9 )
• InspectionDate ( type: esriFieldTypeDate, alias: Inspection Date, length: 8 )
• ProjectStatus ( type: esriFieldTypeString, alias: Project Status, length: 20 , Coded Values: [Complete: Complete] , [Under Construction: Under Construction] , [Proposed: Proposed] , ...1 more... )
• CleanedDate ( type: esriFieldTypeDate, alias: Cleaned Date, length: 8 )
• LinedDate ( type: esriFieldTypeDate, alias: Lined Date, length: 8 )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• created_user ( type: esriFieldTypeString, alias: created_user, length: 255 )
• created_date ( type: esriFieldTypeDate, alias: created_date, length: 8 )
• last_edited_user ( type: esriFieldTypeString, alias: last_edited_user, length: 255 )
• last_edited_date ( type: esriFieldTypeDate, alias: last_edited_date, length: 8 )
• RepairDate ( type: esriFieldTypeDate, alias: Repair Date, length: 8 )
• INT_ID ( type: esriFieldTypeSmallInteger, alias: INT_ID )
• SHAPE ( type: esriFieldTypeGeometry, alias: SHAPE )
• SHAPE.STLength() ( type: esriFieldTypeDouble, alias: SHAPE.STLength() )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
